商品の詳細:
|
| 製品名: | アルミハニカムパネル | サイズ: | 1220*2440mm またはカスタマイズ可能 |
|---|---|---|---|
| サイド長: | 78,10mm または パーソナライズ可能 | アルミパネルの厚さ: | 0.7,0.8mm または カスタマイズ可能 |
| 上部と下部パネル: | アルミニウムまたはカスタマイズ可能 | 表面処理: | 高い地震性能 |
| 芯材: | アルミニウム蜜蜂の巣中心 | ホイルの厚さ: | 0.060.08mm |
| 材料: | アル3003とアル5052 | 色: | 白またはカスタマイズ可能 |
| 厚さ: | 8mmまたはカスタマイズ可能 | アドバンテージ: | 耐火性,破損性 |
| ハイライト: | 5~100mm aluminum honeycomb plate,aluminum honeycomb panel for curtain wall,passive building aluminum honeycomb panel |
||

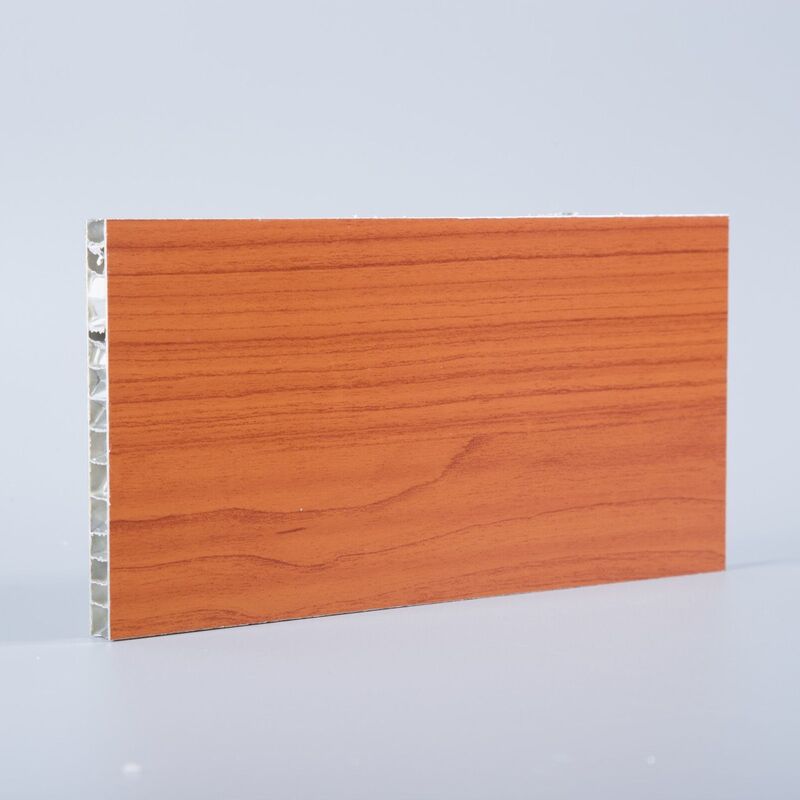

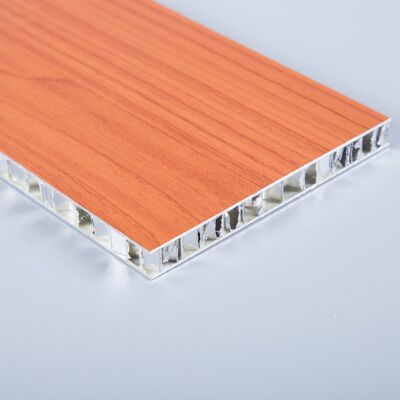

5~100mm Thickness Aluminum Honeycomb Plate For Passive Building Curtain Wall
1. Descriptions:
Aluminum honeycomb plate is made of aluminum plate as the upper and lower panels, hexagonal aluminum honeycomb as the core material, bonded with epoxy adhesive and polyester adhesive, and cold pressed on a cold press. Aluminum honeycomb panel has become the most popular lightweight composite panel in the construction industry due to its light weight, high strength, excellent flatness and sound insulation. It is widely used in building curtain wall, interior decoration, ceiling, partition wall, furniture industry, hull construction, ship decoration, vehicle manufacturing and other fields.
2. Specifications:
| Aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
4. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
5. Aluminum honeycomb panel of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
