商品の詳細:
|
| 製品名: | アルミニウムハニカムパネル | サイズ: | 1500*2800mm または カスタマイズ可能 |
|---|---|---|---|
| サイド長: | 56,7,8,10,11mm または パーソナライズ可能 | アルミパネルの厚さ: | 0.81 について01.2mm または カスタマイズ可能 |
| 上部と下部パネル: | HPL,FRP,アルミパネル,石,またはカスタマイズ可能 | 表面処理: | PVDF,PE,アノード酸化 |
| 芯材: | アルミニウム蜜蜂の巣中心 | ホイルの厚さ: | 0.060 だった080.1mm |
| 材料: | アル3003とアル5052 | 色: | アルミニウム 天然色またはカスタマイズ可能 |
| 厚さ: | 15mm または カスタマイズ可能 | アドバンテージ: | 耐火性,破損性 |
| ハイライト: | oversized aluminum honeycomb panel,aluminum honeycomb sun visor panel,honeycomb panel with aluminum profiles |
||

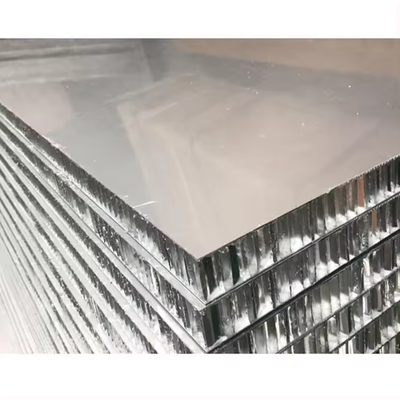

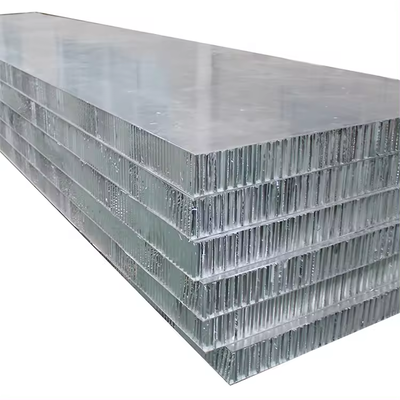

Oversized Aluminum Honeycomb Panel With Aluminum Profiles For Sun Visors
1. Descriptions:

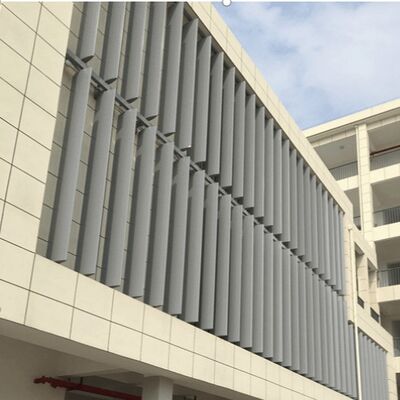

The design of aluminum honeycomb panel outdoor sunshade not only aims to prevent direct sunlight from entering the room, but also needs to consider avoiding the adverse effects of sunlight scattering and radiation. Its shape and layout must meet the needs of window lighting and ventilation, while ensuring that it does not affect the indoor and outdoor views, and striving to achieve a harmonious unity between shading function and architectural design. The design of building sunshade louvers exhibits a regular repetitive variation, resulting in a gradual aesthetic effect.
The surface of Aluminum honeycomb panel is made of aluminum alloy plate with fluorocarbon coating roll coating treatment or general building rock fireproof board, artificial marble, etc. in the middle is a standard aluminum honeycomb core, which is compounded by cold pressing and hot pressing. Due to the special structure of honeycomb material, it has wind pressure resistance and earthquake resistance, the flatness is much higher than that of aluminum plastic plate and aluminum veneer.
2. Specifications:
| Aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
6. Aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
