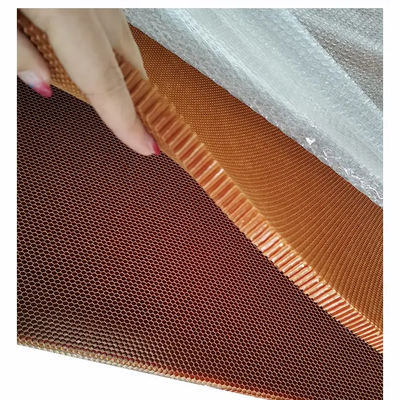

4'×8' Meta Aramid Honeycomb Core
High-quality, lightweight aramid honeycomb core material offering exceptional strength-to-weight ratio for demanding industrial applications.
Product Overview
Aramid honeycomb represents the industry standard for lightweight, high-strength non-metallic composite structures. Commercial grade aramid honeycomb core is manufactured from aramid fiber paper coated with heat-resistant phenolic resin, delivering excellent elasticity, low density, competitive pricing, and superior strength-to-weight characteristics.
This material demonstrates outstanding thermal and humidity stability, enhanced shear strength and modulus, compliance with stringent smoke, toxicity, and flammability standards, and exceptional toughness.
Technical Specifications
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 | 3.2 (1/8) | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 (3/16) | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 (1/4) | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 (3/8) | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 | 3.2 (1/8) | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 (3/16) | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 (1/4) | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 (3/8) | 48 | 9.7 | 1.25 | 0.76 |
Key Advantages
- Super lightweight with high strength and anti-fatigue properties
- Outstanding corrosion resistance and flame resistance
- Excellent environmental adaptability and electrical insulation
- Superior dielectric properties and high stability
Applications
Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and related industries
Quality Control
Our technical engineering team is led by a general manager with experience working in the Netherlands. Core technologies are introduced from the Netherlands, with team members possessing over 5 years of practical experience.
A strict quality control team of 8 professionals oversees quality control of aramid honeycomb core parts, processing, testing, packaging, and all manufacturing stages.
Product Gallery
Company Profile
Suzhou Beecore Honeycomb Materials Co. Ltd, originating from Besin (Dutch) International Group founded in 1957, is a world-leading professional manufacturer of honeycomb materials. Since establishment, the company has been committed to honeycomb technology research and development, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to finished products utilizing honeycomb panel solutions such as truck bodies, laser TV/projection screens, and more.
Factory Overview
Frequently Asked Questions
What is para aramid honeycomb core used for?
Para aramid honeycomb core is one of the best EMI materials, available for industrial and aviation applications. It has been widely used in Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and related industries.
What are the advantages of para aramid honeycomb core?
Para aramid honeycomb core offers super lightweight properties with high strength and anti-fatigue characteristics, outstanding corrosion resistance and flame resistance, excellent environmental adaptability and electrical insulation, and superior dielectric properties with high stability.
What is the packaging method of para aramid honeycomb core?
Small samples of para aramid honeycomb core are packed in cardboard, while bulk orders are packaged in plywood cases for secure transportation.
